Place of Origin:
China
Brand Name:
INNO
Certification:
CE,ROHS
Model Number:
180

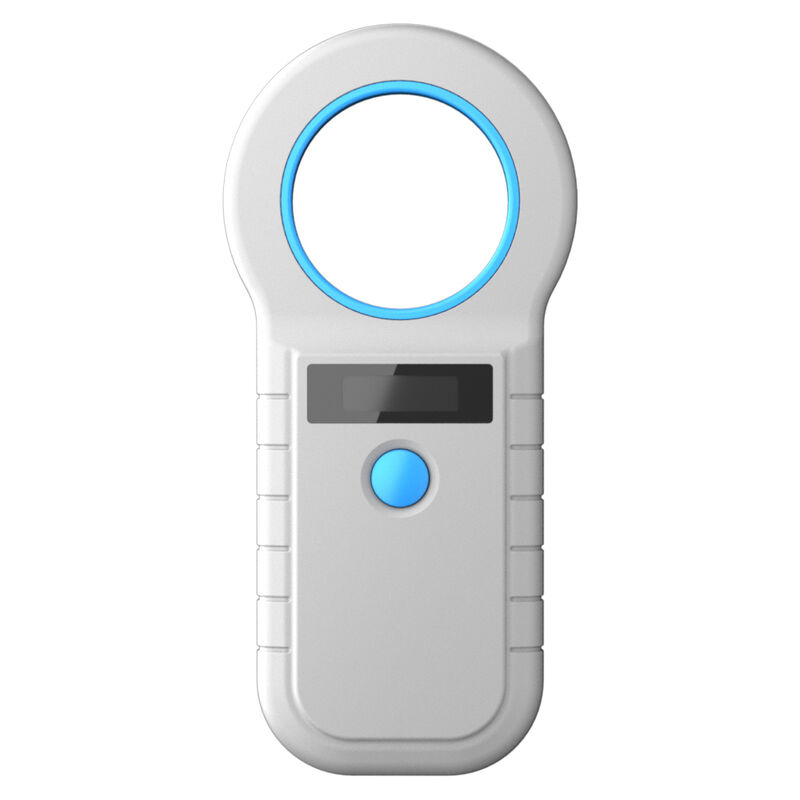

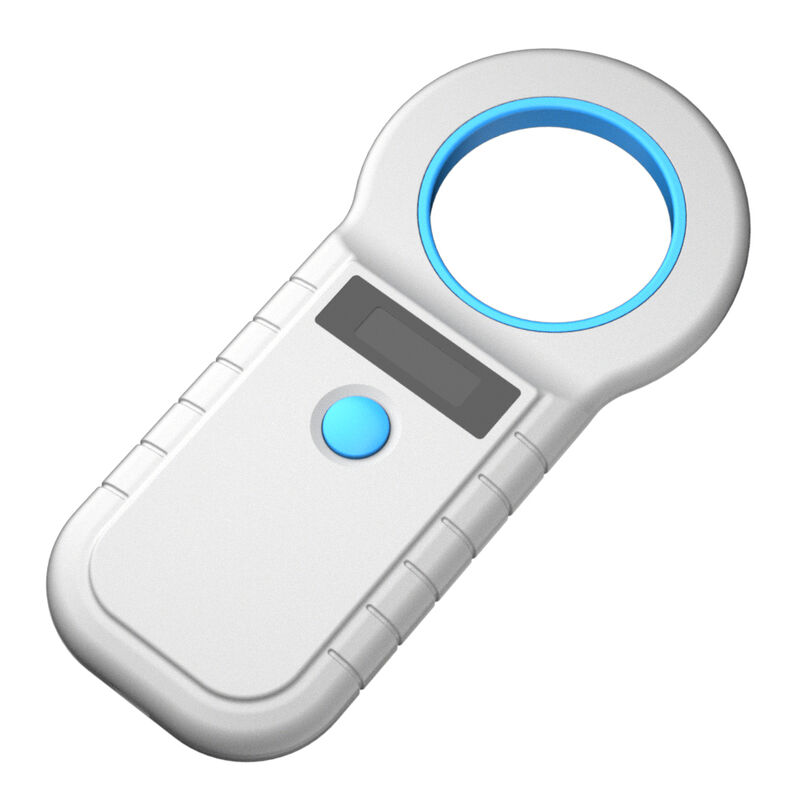

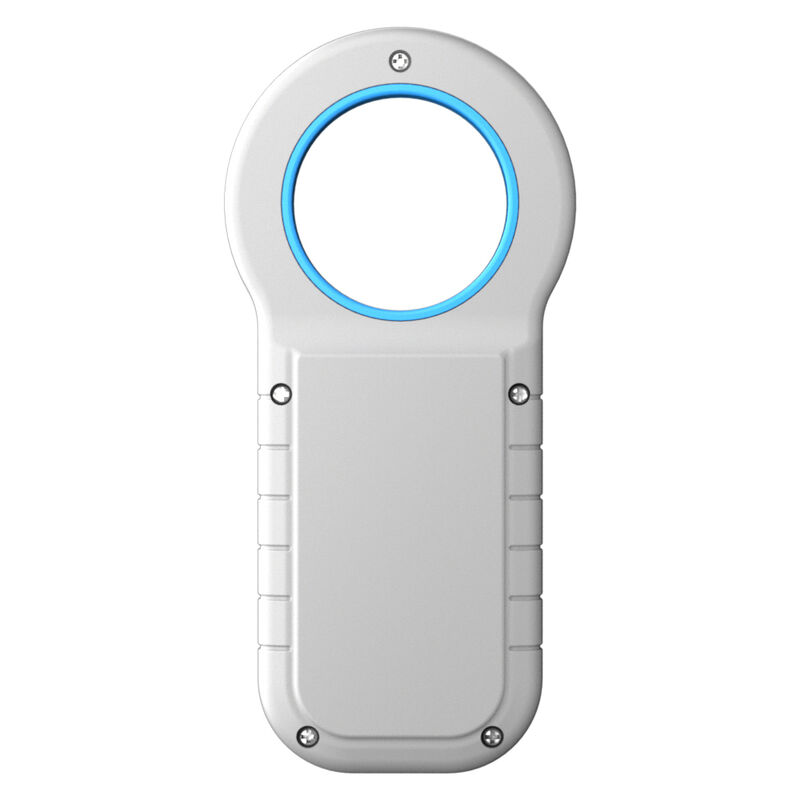

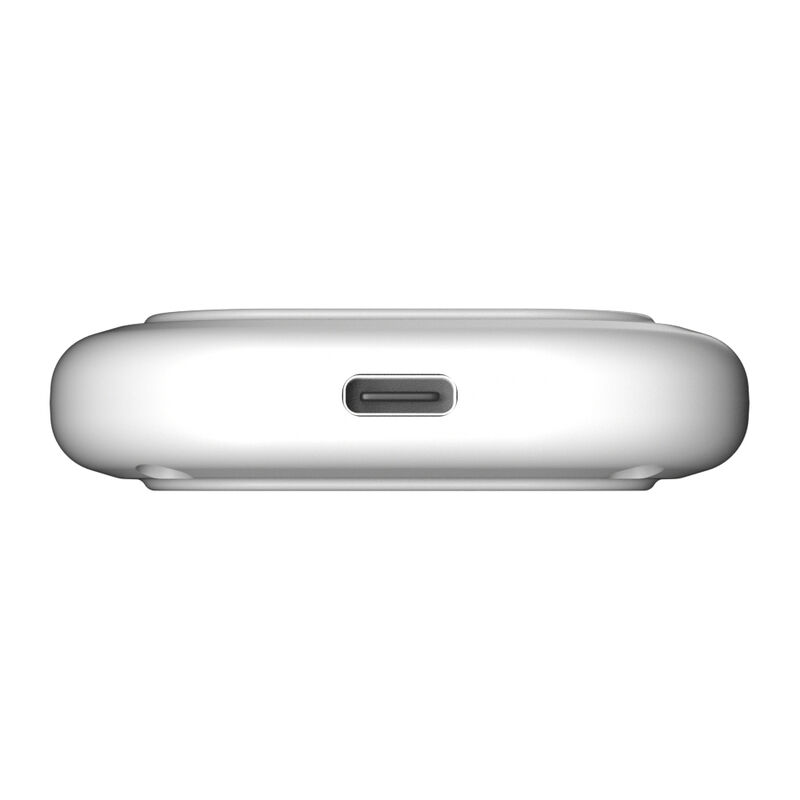

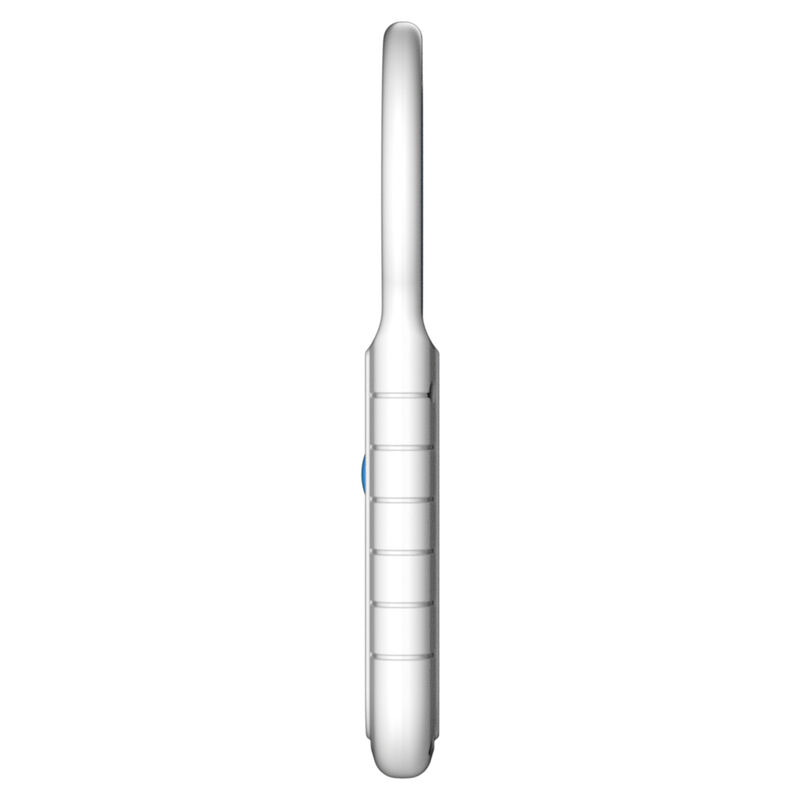

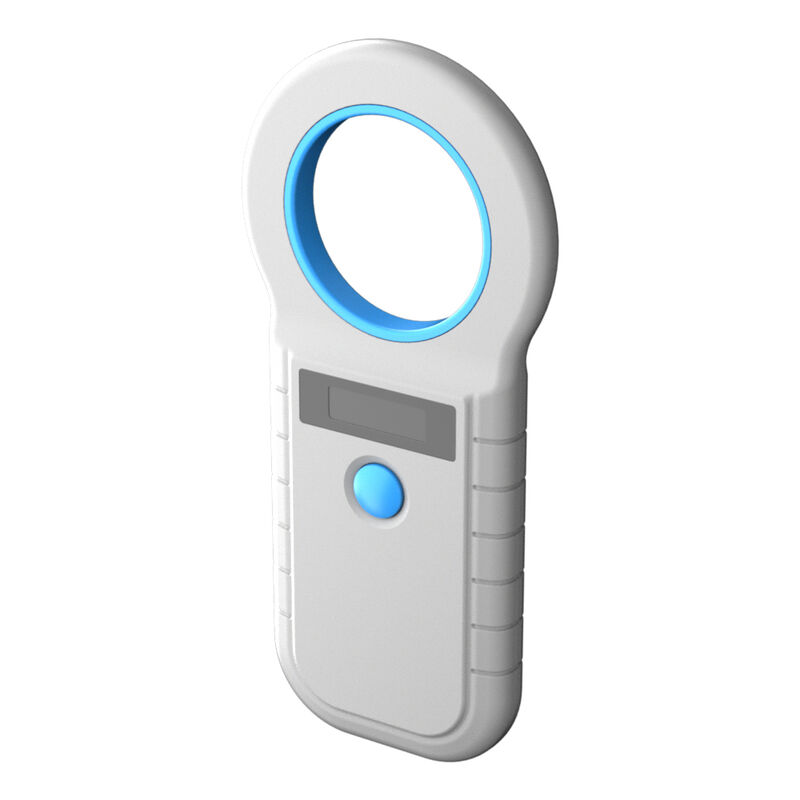

W90D Animal Chip Scanner
Product features
l Small and rounded shape, comfortable to hand and easy to carry.
l Support EMID, FDX-B (ISO1784/85) and other formats of electronic tags.
l Using high-brightness OLED display, it can be clearly displayed in indoor or outdoor bright conditions.
l Built-in storage function, up to 128 tag information can be stored.
l It can be uploaded to a computer via a USB data cable, or to the device via wireless 2.4G or Bluetooth.
|
Project |
Parameter |
|
Model number |
W90D |
|
Operating frequency |
134.2 Khz/125Khz |
|
Label format |
EMID,FDX-B(ISO11784/85) |
|
Read and write distance |
2~12mm glass tube label> 8cm 30mm animal ear tag > 20cm (related to tag performance). |
|
Standard |
ISO11784/85 |
|
Read time |
＜100ms |
|
Signal Indication |
0.91 inch high brightness OLED screen, buzzer |
|
Electricity supply |
3.7V(800mAh lithium battery) |
|
Storage capacity |
128 messages |
|
Communication interface |
USB2.0, wireless 2.4G, Bluetooth |
|
Language |
English (Can be customized according to customer requirements) |
|
Operating temperature |
-10℃~50℃ |
|
Storage temperature |
-30℃~70℃ |
|
Humidity |
5%-95% non-condensing |
|
Product size |
155mm×74mm×15mm |
|
Net weight |
73.8g |
